View.ConvertToIndependent

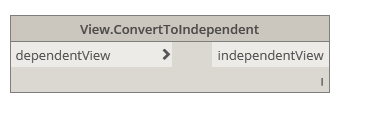

This node will convert dependent view to independent views.

View.ConvertToIndependent

Source: http://dynamobim.org/forums/topic/convert-to-independent-view/

Advertisements

Get Family List for this project

This will output a list of families as Revit elements from the current Revit document. From here you can perform various operations such as determining the Types that proceed from these families and so on. The example below simply exports the current project family name list to the clipboard so it can be pasted into another program such as Word.

TitleBlockFromSheet



titleblockfromsheet_main

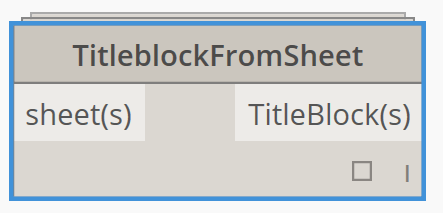

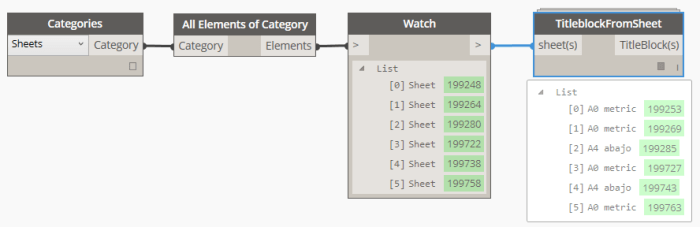

This node will return the TitleBlock instance applied to the input Sheet.

Works with list of sheets.

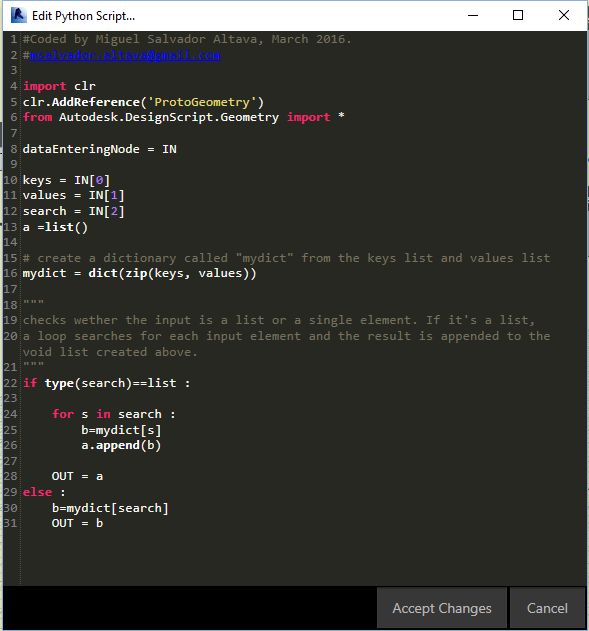

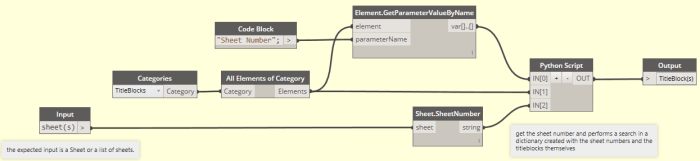

Uses a little python, basically building up a dictionary with the sheet number parameter of the titleblock elements (as the Keys) and the titleblocks themselves as the Values.

Then performs a search in the dictionary using the Sheet number of the Sheet elements.

In pursuit of avoiding dependencies, a basic implementation of the dictionary is used. For more reliable results, the python node can be replaced with SpringNode’s “Dictionary”.

titleblockfromsheet_twit

titleblockfromsheet_inside

titleblockfromsheet_py

Resource: Thesis by Thomas Vogt – Current application of graphical programming in the design phase of a BIM project

Subtitle: Development opportunities and future scenarios with ‘Dynamo’

This 155 page document is very detailed and covers a number of interesting topics, including:

  • Fundamentals of graphic programming, such as History of graphical programming
  • Graphical programming with Dynamo, including technological challenges and Future of Dynamo
  • Survey results

Full credit to Thomas Michael Vogt for his work on this Thesis.

Can be downloaded at:
PDF download

Source:
LinkedIn

vogt-thesis

Duplicate Views

In some cases it is difficult to multi-select and Duplicate multiple Views in the Project Browser. This node takes a list of Views and attempts to Duplicate them. It also takes a duplicationOption as input, which is by default set to Duplicate. This first version does not return the newly created views as elements (ie. the views usually appended with “Copy 1”), but it should do so in future version.

Copy Section Box to List of 3D Views

Sometimes you will want to maintain a number of different 3D views with the same Section Box extents, but perhaps with different View Templates applied. This node was designed to copy the Section Box extent from one 3D view, and apply it to a list of 3D views. It also notifies if the Section Box was applied successfully. In the example below, I simply modified the shape handles of one 3D view Section Box, and then used the definition as shown below to copy the Section Box from the Active View to the other related 3D views. The node deliberately removes the ‘source’ 3D view from the 3D views to be modified.

Resource: Node Book for Dynamo (download)

There are a number of efforts out there that share some of the purpose of Dynamo Nodes. For instance, the Dynamo Primer lists details of certain core nodes, as does Enjoy Revit for list actions.

Obviously, Dynamo Nodes aims to be a unified portal for Nodes, which includes Custom and Core Nodes, along with the opportunity to Search, Tag, Rate, and Comment on specific nodes and their use.

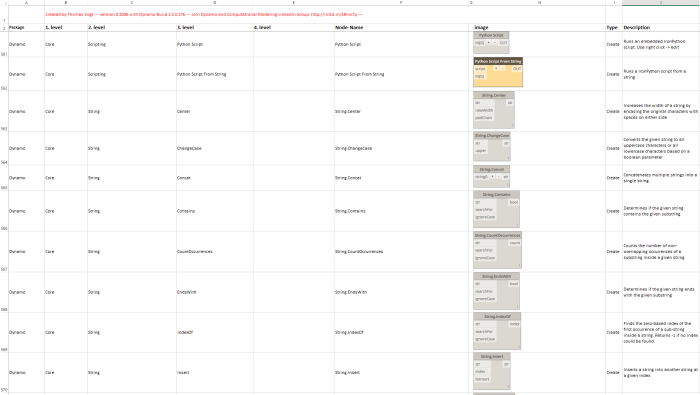

A similar indexing or glossary effort was undertaken by Thomas Vogt, and his work has been collected in a Node Book for Dynamo. You can download the Node Book for Dynamo v2 at:
https://www.dropbox.com/s/ws30t8uhtlx8jqq/Node-Book_for_Dynamo_v2.xlsx?dl=0

I would sincerely encourage anyone who wants to work on a glossary or index like this to contact me and I will invite you as a Contributor here on Dynamo Nodes. If we work together we will be able to make and maintain the best resource for Dynamo Nodes on the web.

Quote from Thomas Vogt:
This is a new version of the node book, but I have no time to completely finish it. Maybe some of you can use it anyway for something… https://www.dropbox.com/s/vlbo5axawtllgpk/Node-Book_for_Dynamo_v2.xlsx?dl=0

Source:
https://www.linkedin.com/groups/6510470/6510470-6114521488193261570

nodebook
