Using an OpenNavisFile object, and a given NavisAttribute, this node will return the Properties of that Attribute. Note how the List.FirstItem is used to prune the attribute list below.
DynaWorks

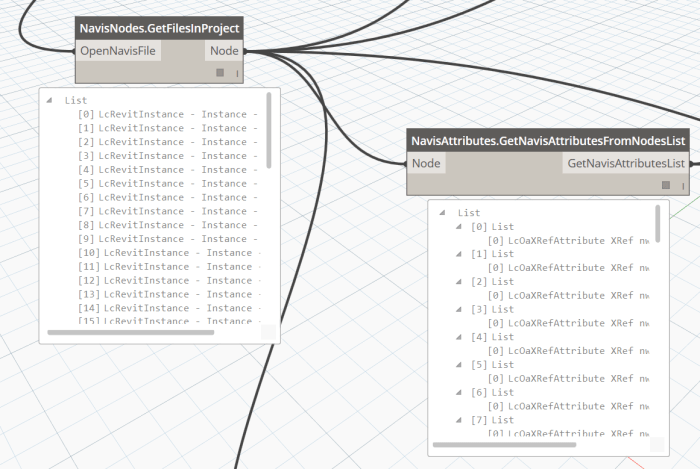

NavisAttributes.GetNavisAttributesFromNodesList
This takes a Node object, and then lists Attributes that are related to it.

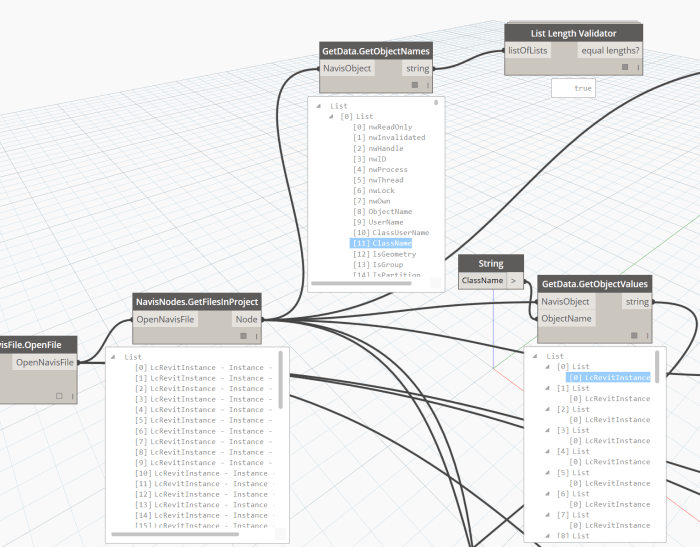

GetData.GetObjectValues
Using a known ‘ObjectName’ string and a NavisObject, this node outputs the value of that Navisworks Object Name.

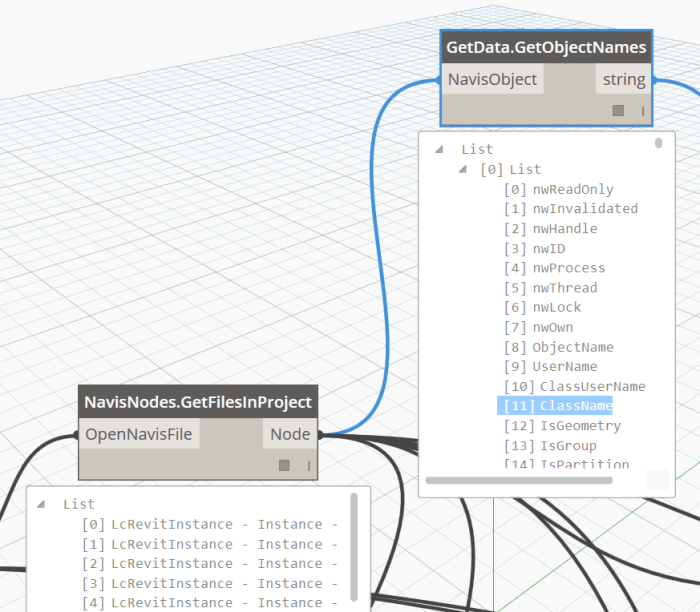

GetData.GetObjectNames
This takes a NavisObject (such as a ‘Node’ in DynaWorks), and lists the Object Names associated with that item.
NavisNodes.GetFilesInProject
This takes a ‘OpenNavisFile’ object, and then lists the files that are Appended to it.
OpenNavisFile.OpenFile
This node opens a file in Navisworks, and can be run from Dynamo in sandbox or standalone mode. The Boolean switch optionally allows Navisworks to run ‘hidden’ or in the background (when set to false). The output is a ‘OpenNavisFile’ object, which is used in other DynaWorks nodes.
DynaWorks Node Index
DynaWorks is maintained by Adam Sheather, see this post on DynaWorks 16.
On github at https://github.com/Gytaco/DynaWorks
AppendFile
ClearClashResults
GetCameraPoint
GetClashBoundingBox
GetClashDetection
GetClashGroupResults
GetClashNodes
GetClashPoint
GetClashResultComments
GetClashTests
GetDirectionPoint
GetFilesInProject
GetNavisAttributesFromNodesList
GetNavisAttByClassName
GetNavisAttByClassUserName
GetNodeChildren
GetNodesFromSelectionsSets
GetObjectNames
GetObjectValues
GetPropertiesList
GetSavedViewCommentsByName
GetSavedViews
GetSelectionSetsInProject
GetSuitableDirectionPoint
GetSuitableEyePoint
GetValuesAsStringClassName
GetValuesAsStringClassUserName
GetView
GetViewDirection
mGetCamerPoint
mGetClashBoundingBox
mGetClashPoint
mGetDirectionPoint
mGetSuitableDirectionPoint
mGetSuitableEyePoint
mGetViewDirection
NodeByClassNameList
NodeByClassUserNameList
OpenFile
PublishFile
RemoveResolved Clashes
RunAllTests
SaveAs
SaveFile
StayOpenFile
