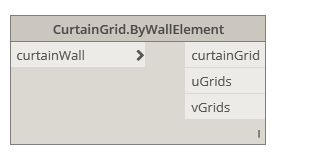

CurtainGrid.ByWallElement


CurtainGrid.ByWallElement

Dynamo Hierarchy: Rhythm>RevitElements>CurtainGrid>CurtainGrid.ByWallElement

Description:

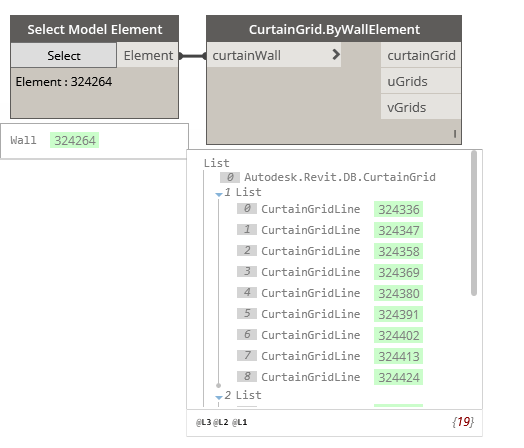

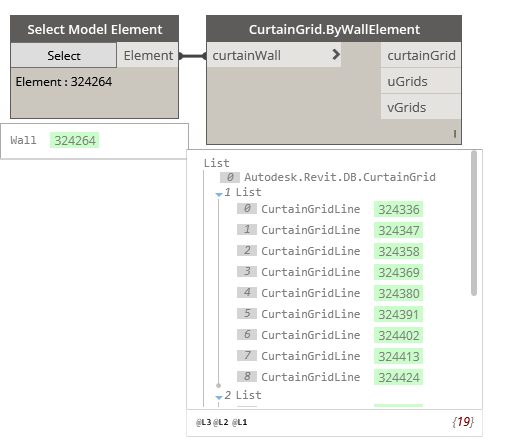

This node will retrieve the curtain grid and U/V Gridlines from the given wall.

Inputs:

curtainWall : Wall

Outputs:

curtainGrid : CurtainGrid

uGrids : CurtainGridline

vGrids : CurtainGridline
