Dynamo Hierarchy: Rhythm>Revit>Elements>CurtainGrid>CurtainGrid.ByWallElement
Description:
This node will retrieve the curtain grid and U/V Gridlines from the given wall.
Inputs:
curtainWall : Wall
Outputs:
curtainGrid : CurtainGrid
uGrids : CurtainGridline
vGrids : CurtainGridline
Dynamo Hierarchy: Rhythm>Revit>Elements>CurtainGridLine>CurtainGridLine.RemoveSegment
Description:
This node will remove the given curve segments from the curtain grid line.
Inputs:
curtainGridLine : Element
curves : Curve
Outputs:
curtainGridLine : Element
Dynamo Hierarchy: Rhythm>Revit>Elements>CurtainGridLine>CurtainGridLine.FullCurve
Description:
This node will retrieve the geometric curve from the curtain wall.
Inputs:
curtainGridLine : Element
Outputs:
FullCurve : line
Dynamo Hierarchy: Rhythm>Revit>Elements>CurtainGridLine>CurtainGridLine.AllSegmentCurves
Description:
This node will retrieve the geometric curve from the curtain wall gridline.
Inputs:
curtainGridLine : Element
Outputs:
AllSegmentCurves : curve
Dynamo Hierarchy: Rhythm>Revit>Elements>CurtainPanel>CurtainPanel.IsolateInView
Description:
This node will isolate the given curtain wall panels in the active view.
Inputs:
curtainPanels : Element
Outputs:
curtainPanels : Element
Dynamo Hierarchy: Rhythm>Revit>Elements>Dimension>Dimension.GetCurve
Description:
This will obtain the underlying curve of the dimension string.
Inputs:
dimension : Dimension
Outputs:
dimensionLine : Curve
Dynamo Hierarchy: Rhythm>Revit>Elements>Element>Element.GetIntersectingElementsOfCategory
Description:
This will take a given element and category and grab the intersecting elements of that category.
Inputs:
element : Element
category : Category
Outputs:
elements: Element
Dynamo Hierarchy: Rhythm>Revit>Elements>Element>Element.SetParameterValueByNameTypeOrInstance
Description:
Set one of the element’s parameters. Instance if it is instance or type if type.
Inputs:
element : Element
parameterName : string
value : Var
Outputs:
element : Element

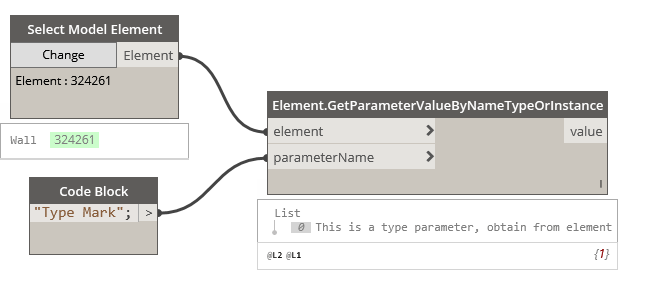

Dynamo Hierarchy: Rhythm>Revit>Elements>Element>Element.GetParameterValueByNameTypeOrInstance
Description:
This node will get the parameter as instance or type.
Inputs:
element : Element
parameterName : string
Outputs:
value : Var
Dynamo Hierarchy: Rhythm>Revit>Elements>Element>Element.SetParameterValueByNameCaSeiNSeNSiTiVe
Description:
This node will set a parameter value by search string, regardless of case of the search string. Note: If the parameter name appears multiple times it will retrieve the first one that it finds.
Inputs:
element : Element
parameterName : string
value : Var
Outputs:
value : Var
