ViewPlan.GetCropBox


ViewPlan.GetCropBox

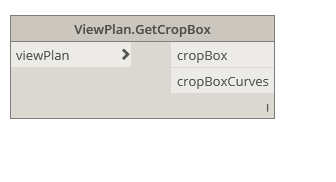

Dynamo Hierarchy: Rhythm>Revit>Elements>ViewPlan>ViewPlan.GetCropBox

Description:

This node will get the bounds of the view in paper space (in feet).

Inputs:

viewPlan: Element

Outputs:

cropBox: BoundingBoxXYZ

cropBoxCurves: Curve

Advertisement

One thought on “ViewPlan.GetCropBox

  1. If you find yourself here wondering why you’re getting a box instead of the correct lines make sure the view(port) is not pinned in a viewport on a sheet, this will cause the node to return incorrect geometry.
