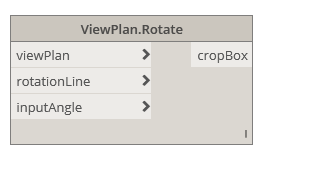

Dynamo Hierarchy: Rhythm>Revit>Elements>ViewPlan>ViewPlan.Rotate

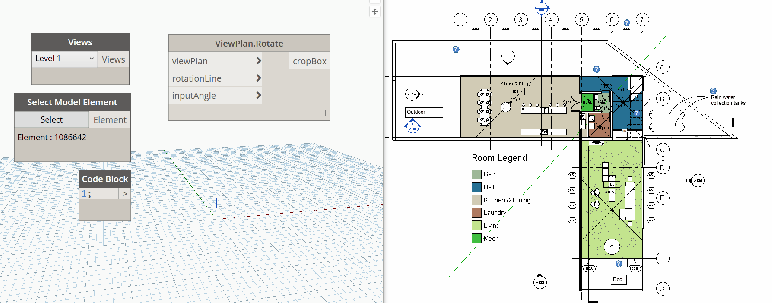

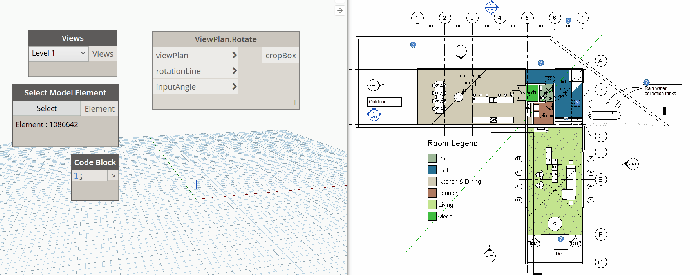

This node will attempt to rotate the plan view into 3d. Use at your own risk! Built as a proof of concept based on a tweet from Luke Johnson.


viewPlan: Element

rotationLine : Curve

inputAngle : double


cropBox: BoundingBoxXYZ
