Workflow: SRTM Data to Topography in Revit


Overview: This workflow allows the user to source SRTM Data in GeoTIFF format from http://earthexplorer.usgs.gov/, and use it to create topography in Revit. Shuttle Radar Topography Mission (SRTM), was carried out by Nasa in 2000 and recorded elevation data. This data has been made available globally at 1 Arc Second, and in more detail at 1/3 Arc Second for some parts of the US.

Packages: ‘Elk’.

Download Script: Dropbox link

header

Step 1: Getting your SRTM Data in GeoTIFF format

Go to http://earthexplorer.usgs.gov/ and login, or register for a free account.

Slides2

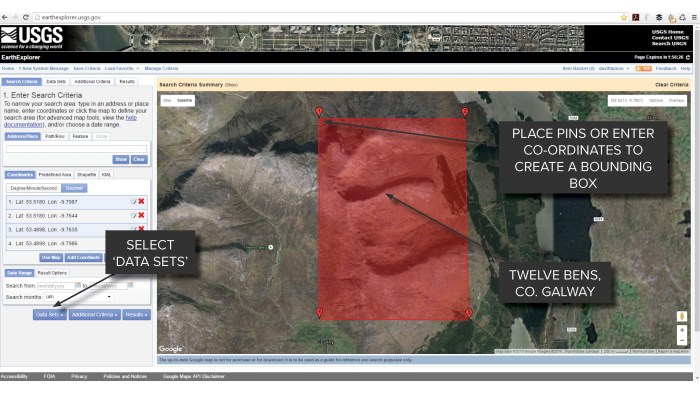

Zoom to your desired location, and place pins or enter co-ordinates to create a bounding box. Then select ‘Data Sets’.

Slides3

Next, you should navigate to ‘Digital Elevation’ > ‘SRTM’, and select ‘SRTM 1 Arc-Second Global’ before clicking ‘Results’.

Slides4

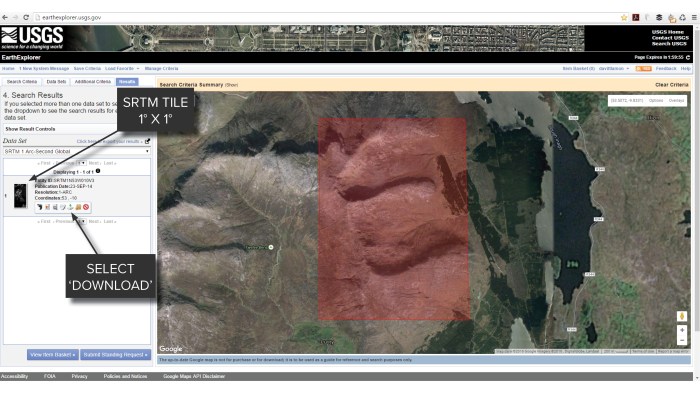

The ‘Result’ should be a 1° x 1° tile. If your bounding box spans multiple tiles, you will be given the option to download 2 or more images. These can be stitched together at a later stage. Next click the ‘Download’ icon.

Slides5

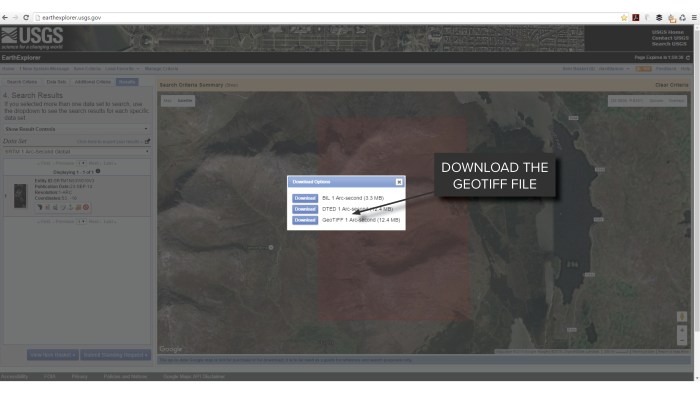

From the pop-up window, download the ‘GeoTIFF 1 Arc-second’. This file will be used to create your topography in Dynamo and Revit.

Slides6

Step 2: Creating your topography in Dynamo and Revit

SRTM Data to Topography in Revit

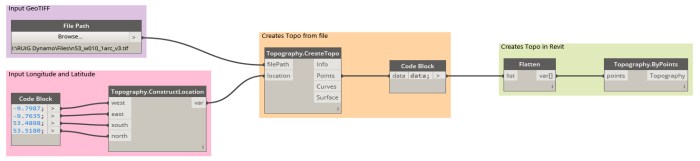

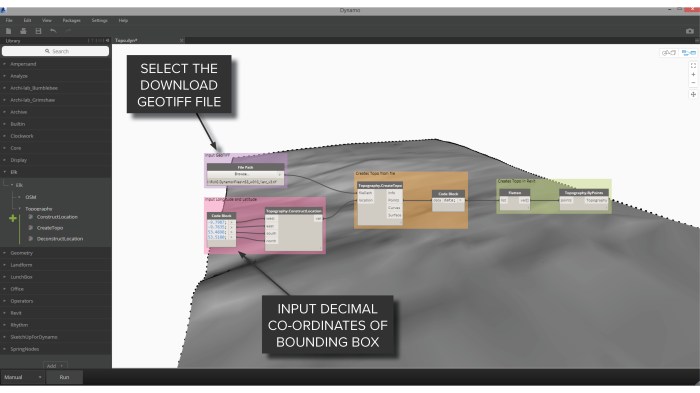

First open Dynamo from Revit and then the script. Use the ‘File Path’ node to select your downloaded GeoTIFF file, and input the decimal co-ordinates of your selected location. If you don’t already have these they are available from the Earth Explorer website after you’ve created your bounding box.

NOTE: If you’re also using OSM data this can be used as your location.

SlidesB6

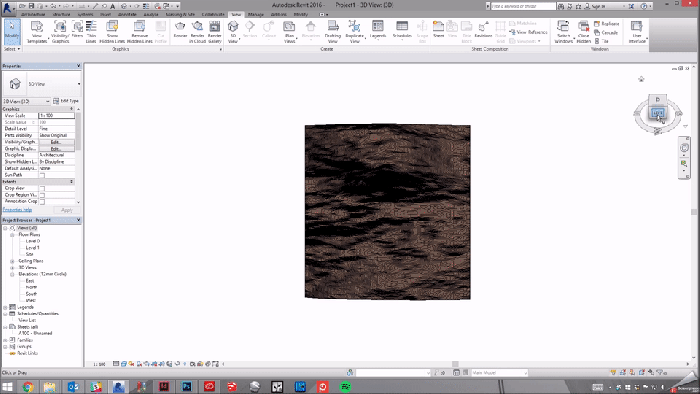

Click ‘Run’, and just wait a little bit for it to work its magic and we’re done! You can now close Dynamo and head back to Revit. The result looks a little bit like this..

TopoGIF

Hope it’s of some help! I can’t imagine it’s very accurate, but a good place to start.

Credit to Timothy Logan for his ‘Elk’ nodes and video tutorials!

Rene Pellicer Garcia also put together a nice video tutorial here..

Advertisements

5 thoughts on “Workflow: SRTM Data to Topography in Revit

  1. this seems to work fine as per the steps, but i tried the highest mountain in ireland, and it still results in a relatively flat surface. something isnt working correctly.

    1. I think the trouble lies with the quality of the SRTM Data. When you go outside the US the data isn’t as accurate i.e. at 1 Arc Second Global it’s only a digital elevation point every 30 metres. You can get lucky though, and it can be handy while waiting on a survey to come in.
